CORRECT SOUND Custom

Dezzmon

Member
Messages
30
http://correctsoundcustom.com/index/0-12#!/~/product/category=2244169&id=22665455



This pedal is designed and built on order Stephen O'Malley.

It a hybrid pedal in a compact box size 187mm x 120mm x 38mm with two channels: tube and "stone". The base of the tube channel is scheme of the preamp Sunn Model-T (1973) on two 12ax7EH tubes. The "stone" section will have preamp from Sunn beta bass amplifier.

This pedal has two outputs, one of which will have constant signal from tube preamp, the other one will have one of 4 possible variants depending on commutation. All commutation works with the help of three footswitches. "Tube" and "beta" switches on corresponding channel. When both switches are on, the signal passes through channels sequentially and switche "revers" gives direction of the signal ("tube" after "beta" or vice versa).
Each channel has classical guitar set of regulators (gain, bass, mid, treble, level) and master volume.

Last edited:

Dezzmon

Member
Messages
30


MT tube preamp is designed on the base of the section of preamp of guitar amplifier SUNN Model-T of 1973 on two ECC83 S (12ax7 EH) tubes. In fact it is a channel tube of our pedal “tube beta hybrid” in a separate box, but there is one difference. This preamp has got two regulators of gain. Normal and Bright ( as amplifier Sunn Model-T) It gives possibility to change “brightness” of the signal smoothly.

Our preamp has TRUE BYPASS operated by relay. It works so that when power supply disappears (ex: someone pulled out the cord by a foot by chance) the pedal switches into mode bypass and sound doesn’t disappear.

Specification:

  • tube 2 X JJ ECC83 S (12AX7 EH)
  • gain N (normal)
  • gain Br. (bright)
  • bass
  • mid
  • treb
  • level
  • true bypass
  • U - 12 VAC 1000 mA (minimum)
  • power plug 5.5mm x 2,1mm
  • Dimension of the box: 144 mm x 120 mm x 58 mm ( on the level of knobs)

Available for order.

Made only to order. Manufacturing period 4-10 weeks.


http://correctsoundcustom.com/products#!/~/product/category=2244169&id=33443864

Last edited:

Dezzmon

Member
Messages
30
Splitter-blender



Our new pedal contains two different and independent devices in one box. Two channel splitter is to the right. Two channel blender is to the left. In and out of this pedal do not depend on each other. In is for splitter and out is for blender.
Splitter divides the input signal into two perfectly independent and absolutely identical signals. There are no any regulators. You can send the signals, for example, to two amps or to two different effects chains and so on. Wherein the blender can be out of use.
The blender has two inputs A and B and can be on/off by the right switch A+B. When it is on the LED indicator beside the switch blend is on. When blender is on, signals from both inputs are blended and lead the out. You can regulate correlation of signals with the help of switch blend. Switch phase changes phase of the signal from B channel into opposite. Due to this you can sum or recoup the signals.
There is one more difference between channel A and channel B. If there are no connection in channel B then a signal from input of the splitter in is lead to the channel B with the help of inner splint. This allows to blend direct signal with processed signal. The inner connection is off when the plug is on to the channel B.
If the blender is off the signal from one of the channel leads directly to out (true bypass). The left footswitch A/B switches either A or B signal leads to the out. The correspondent indicators is on.
9 V outside stabilizing power supply is necessary for functioning of this pedal. The power plug has standard connection for effect pedals – minus in the center.

Available to order

Last edited:

Dezzmon

Member
Messages
30
tube beta hybrid Mk-II



It is a hybrid pedal in a compact box size (187mm x 120mm x 38mm),with two channels: tube and "stone". The tube channel is based on Sunn’s Model-T (1973), with two 12ax7EH tubes. The "stone" section has the preamp of the Sunn Beta amplifier (bass or lead, depending on the customer's choice).
Unlike the first version of the pedal, the channels aren’t switched successively but in parallel, as in our Beta Bass preamp. The new preamp only has one output and a balanced XLR DI out, which has switches for pre/post master and ground lift. We also offer true bypass.
Just like we did with model I of the Tube Beta Hybrid, we intend to produce two variants of the Beta channel: BASS or LEAD, depending on the customer's choice. Each channel has a classical set of regulators: gain, bass, mid, treble, level and master volume.

Specification:
  • Channels quantity - 2 (tube, beta)
  • channel tube:
  • tube is based on the preamplifier of SUNN Model-T amp (1973)
  • passive EQ
  • separate output
  • channel beta:
  • beta is based on the preamplifier of SUNN beta amp (bass or lead)
  • Active EQ
  • Separate adjustment on each channel
  • drive
  • bass
  • mid
  • treb
  • level
  • master volume
  • footswitch - t/b, t+b, bypass
  • U - 12VAC 1200mA (Power Supply not included)

Available to order

Last edited:

Dezzmon

Member
Messages
30

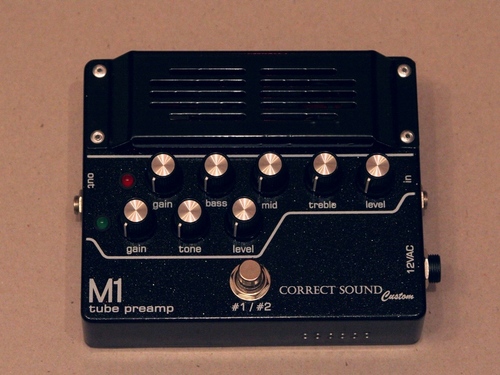

M1 tube preamp

Warning!

Available for order.
Made only to order. Manufacturing period 4-10 weeks.


M1 tube preamp is designed and built on two ECC83 S (12ax7) tubes. In fact it is evolution of our pedal MT preamp. New preamp has got two channel - #1 (clean) & #2 (dist).

Preamp has the first and last cascades like MT and the middle cascade of its own design.

Specification:

  • tube 2 X JJ ECC83 S (12AX7 EH)
  • #1 channel
  • gain
  • tone
  • level
  • #2 channel
  • gain
  • bass
  • mid
  • treb
  • level
  • U - 12 VAC 1000 mA (minimum)
  • power plug 5.5mm x 2,1mm
  • Dimension of the box: 144 mm x 120 mm x 58 mm ( on the level of knobs)

Last edited:

Dezzmon

Member
Messages
30


Harmonic generator

Warning!

Available for order.
Made only to order. Manufacturing period 3-8 weeks.


Hand made

An HARMONIC GENERATOR is an audio signal processing technique used to enhance a signal by dynamic equalization, phase manipulation, harmonic synthesis of (usually) high frequency signals, and through the addition of subtle harmonic distortion.

Harmonic synthesis involves the creation of higher order harmonics from the fundamental frequency signals present in the recording. HARMONIC GENERATOR is also used to synthesize harmonics of low frequency signals to simulate deep bass in smaller speakers.

Specification:
  • Harmonic control
  • gain
  • Q
  • freq
  • Mix
  • derect
  • harmonic
  • true bypass
  • U - 9V DC (Power Supply not included)

In stock -->> http://correctsoundcustom.com/products#!/HARMONIC-GENERATOR/p/59587263/category=2256343

Last edited:

Dezzmon

Member
Messages
30
tube beta hybrid Mk-II UB (ultra bass version)



It’s a hybrid pedal in a compact box size (187mm x 120mm x 38mm),with two channels: tube and "stone". The tube channel is based on SunnModel-T (1973), with two 12ax7EH tubes. The "stone" section has the preamp of the Sunn Beta bass amplifier.
This preamp is Ultra Bass version.
He has lowpass filter +20dB cut freq 150Hz and booster +15dB 250...350Hz on tube channel before saturation section.
Both channel and LPF connected in parallel. The new preamp only has one input and one output. We also offer true bypass. Tube and beta channels has a classical set of regulators: gain, bass, mid, treble, level and master volume.

Available for order -->> http://correctsoundcustom.com/products#!/tube-beta-hybrid-UB-preamp/p/61867144/category=2244169

Last edited:

Dezzmon

Member
Messages
30
Wood decor style
Let us introduce new look of our pedals.
It have black box and the front surface is decorated with natural veneer (cherry, oak, american nut or birch)
Inscriptions are made with the help of laser engraving. We use oil instead of lacquer in order to protect it from the external impacts
We hope you like this new pedals.



Dezzmon

Member
Messages
30
The Black Sunn




The Black Sunn preamp

Warning!

Available for order.Made only to order. Manufacturing period 4-10 weeks.


Tube preamp with stone warmer in a compact body.
Having combined our MT tube preamp with a stone warmer we get The Black Sunn preamp. Our new pedal has two channels. One of them is a stone channel which is built on the base of RAT Distortion pedal. The other one is a tube channel built on the base of preamp section ofSunn Model T 1973 (we use 2 tubes JJ ECC83-S). The channels can function separately as well as together. When both channels are switched on, the channels are commutated successively. The first goes RAT channel and warms channel Model T that coming afterwards . If both channels are off the signal passes directly from input to output (True bypass).
Enclosure dimensions: 146x120x38mm (5.70 x 4.70 x 1.50 inch).

This preamp functions from stabilize power supply 12V DC 1200 mA (not included into the set).

Available for order -->> http://correctsoundcustom.com/products#!/The-Black-Sunn/p/66035520/category=2244169

Last edited:

Dezzmon

Member
Messages
30
tube beta hybrid UB rack mount


Warning!

Available for order

Made only to order. Manufacturing period 4-10 weeks.

It’s a hybrid pedal in a compact box size (187mm x 120mm x 38mm),with two channels: tube and "stone". The tube channel is based on SunnModel-T (1973), with two 12ax7EH tubes. The "stone" section has the preamp of the Sunn Beta bass amplifier.
This preamp is Ultra Bass version.
He has lowpass filter +20dB cut freq 150Hz and booster +15dB 250...350Hz on tube channel before saturation section.
Both channel and LPF connected in parallel. The new preamp only has one input and one output. We also offer true bypass. Tube and beta channels has a classical set of regulators: gain, bass, mid, treble, level and master volume.


Specification:

  • Channels quantity - 3 (tube, beta, lowpass filter)
  • lowpass filter +20dB cut freq 150Hz
  • channel tube:
    • tube is based on the preamplifier of SUNN Model-T amp (1973)
    • passive EQ
    • booster +10dB on 250...350Hz
  • channel beta:
    • beta is based on the preamplifier of SUNN beta bass
    • Active EQ
  • Separate adjustment on each channel
    • drive
    • bass
    • mid
    • treb
    • level
  • master volume
  • footswitch jack - t/b, t+b
  • U - 220-240VAC 50Hz / 110-120V AC 60Hz
http://correctsoundcustom.com/produ...preamp-rack-mount/p/68360400/category=2244169

Last edited:
