Just finished modding my Flashback X4 :)

Discussion in 'Effects, Pedals, Strings & Things' started by Smgbad, Mar 3, 2015.

  1. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA

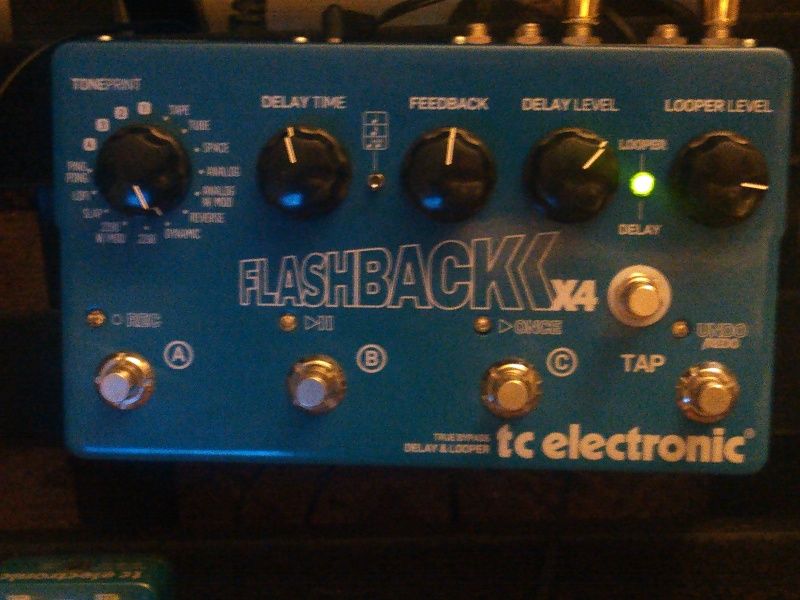

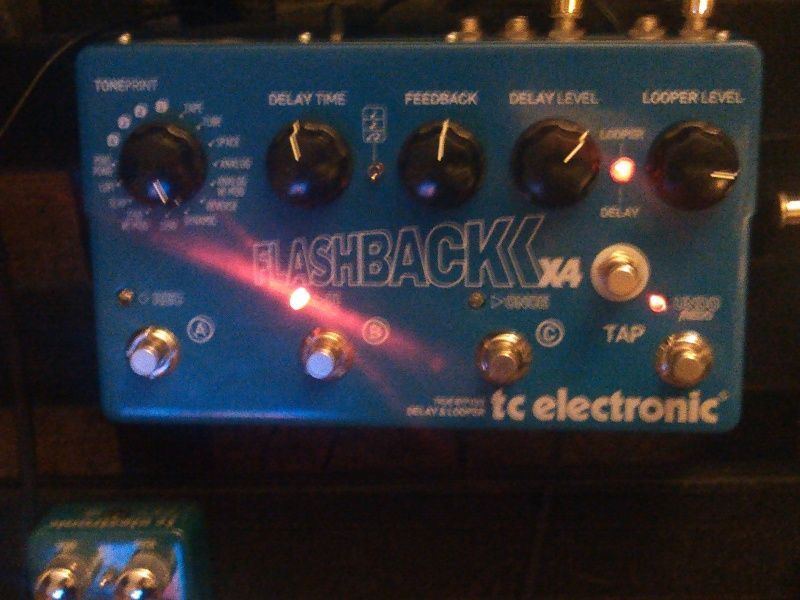

    Had to do the whole thing with a faulty Weller iron, so it took a hot minute and melted the first switch I tried to put in, but the results are well worth it! Goodbye stupid hard-to-reach Delay/Looper mini-toggle, HELLO FOOTSWITCH w/ status LED! Special thanks to Coltonius for all his help and patience!


    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Apr 12, 2015
    LordByron, MIM#1 and AustinIsPresent like this.
  2. PurpleJesus

    PurpleJesus Gold Supporting Member Silver Supporting Member

    Messages:
    7,592
    Joined:
    Jul 11, 2014
  3. Prince

    Prince Supporting Member

    Messages:
    1,711
    Joined:
    Feb 19, 2010
    Location:
    Atlanta, GA
    Ohhh and an LED!

    I've been meaning to do this for a while now. Any instructions/advice you care to offer?

  4. kyoungsteadt

    kyoungsteadt Member

    Messages:
    286
    Joined:
    May 7, 2007
  5. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA
    I finagled my instructions from a fellow TGP'er, but if anyone needs instructions just let me know and I'll help as much as I can. I had to take a few extra steps as my soldering iron is a piece of crap (ie: It melted the first switch I tried to put in, and I had to repair a trace it melted on the daughter-board...lol), but it all works perfect in the end, so well worth it!

    Last edited: Mar 3, 2015
  6. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA
    PM me if theres any part of it you have any questions about. I'd be glad to help.

  7. Prince

    Prince Supporting Member

    Messages:
    1,711
    Joined:
    Feb 19, 2010
    Location:
    Atlanta, GA
    Yeah I don't even use the looper but I want the footswitch so I can more easily access my "4th preset" of YWSIWYG with the knob values.

  8. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA
    That's actually a great idea. So this mod is dual-function. WOOT! :beer

  9. Prince

    Prince Supporting Member

    Messages:
    1,711
    Joined:
    Feb 19, 2010
    Location:
    Atlanta, GA
    Yeah so basically set knob values=BAM! 4th preset. Can either keep the looper volume turned all the way down, or just don't hit any toggles :)

    I do it with the Space algo, I have it set up to the point of self-oscillation for craziness.

  10. coltonius

    coltonius Señor Member Silver Supporting Member

    Messages:
    9,944
    Joined:
    May 21, 2013
    Location:
    Wacko
    For those who are interested and need a little guidance, here is a quick overview:

    Disclaimers:
    First: This mod will most certainly void your warranty with TC Electronic.
    Second: Perform at your own risk. This guide is just a road map; be careful and take your time! I will not liable if you damage your pedal!

    1. Removing the toggle
    The Looper/Delay toggle switch is a SPDT with a stabilizer pin that doesn't do anything. The trickiest part of the mod will be desoldering it from that daughter board between the Delay and Looper knobs.

    2. Installing the footswitch
    - An X-Wing style DPDT will work, but a lower profile footswitch seems to be easier to press, so I prefer it.
    - Take care to avoid the ridges on the inside of the enclosure.
    - On a DPDT switch, one pole will be a wire-for-wire replacement for the toggle you just removed (use 4-5-6, for instance). The LED will go on the other pole (1-2-3).

    [​IMG]

    3. Installing the LED
    - You'll need to drill the hole a little larger if you intend to stick a 5mm LED with a bezel in there. No big deal, though!
    - Use that second pole of the DPDT footswitch for the bi-colored LED. The power source you tap into will be the back of the DC jack (see picture below): the top lug is positive, the bottom lug is ground, and the right lug is left alone. Also, best to put some electrical tape over your work to keep the wires from grounding out against the bottom plate.
    - Most bi-colored LEDs have 2 negative leads and 1 positive lead. Power accordingly: DC negative > resistor > Lug 2; DC positive > LED's positive lead. LED negative lead 1 to Lug 1, LED negative lead 2 to Lug 3.

    [​IMG]

    Have fun! :aok

  11. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA
    Thx for adding that for everyone Coltonius. A few additional tips I would point out (in case any of you brave enough to try this run into the same problems I did):

    1. Be careful when removing the hex screws from the housing to open it up as I've heard from several people that they stripped them or broke the heads off. Slow and steady wins the race here.

    2. If you accidently burn through a trace on the delay/looper daughter board trying to get that original mini-toggle out, it's not the end of the world. You can VERY CAREFULLY attach leads from that trace's starting points to go to the new stomp switch and just not use the original hole (which would have been occupied by a leg of the mini-toggle). That being said, if you have a bargain basement soldering gun or limited soldering abilities, leave this to a professional or risk destroying the board.

    3. The drill sizes you will need to do it up like mine would be:

    Footswitch = 15/32 (or 12MM or 31/64). You can also use 1/2" IF your footswitch came with washers (Carling does NOT for example).
    LED = I hand reamed the original mini-toggle hole with a drill bit to 1/4" to fit the plastic bezel lens (as seen in the first pic in the thread). That bezel can be purchased from PedalPartsPlus.com, where I got all my parts for this project from.

    4. This mod technically calls for a DPDT footswitch, but if you want you can use a 3PDT just fine. Just don't use one of the rows. I say this because quality DPDT stomps can be a pain in the butt to find and are twice as expensive, AND they tend to melt very easily if you get the X-lug style. I held my iron to one of those cheaper X-lugs for like 2 seconds and the lug came out of the switch like it was hot butter, making it completely unuseable.

    5. Lastly... Coltonius mentioned you run the negative power wire to a resistor and then to lug 2 of your LED lugs on the switch. In case anyone is curious, I used a 2.2k resistor, but 1k up to around what I used would be fine.

    Last edited: Mar 8, 2015
  12. coltonius

    coltonius Señor Member Silver Supporting Member

    Messages:
    9,944
    Joined:
    May 21, 2013
    Location:
    Wacko
    Glad to help... And thanks for the supplement on things I left out!

  13. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA
    Just played it again today and used the switch... Not having to bend over rocks almost as much as I do. :) Just so happy with it I had to bump this up again!

  14. blackba

    blackba Supporting Member

    Messages:
    9,168
    Joined:
    Dec 10, 2005
    Location:
    Michigan, USA
    Cool idea. On mine the delay stays on when you are in loop mode, so for me it wouldn't be that useful.

    My biggest gripe with the flashback x4 is that it turns on the effect when it gets power. Very annoying.

  15. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA

    The delay actually goes to exactly where the knobs are set (WYSIWYG) when you switch to loop mode. If you don't want the delay, turn the delay level down with your foot before switching over and it becomes a looper just like the Ditto (but with tons more options).

  16. Smgbad

    Smgbad Supporting Member

    Messages:
    2,147
    Joined:
    May 7, 2010
    Location:
    Raleigh, NC USA
    Thinking of carefully gluing 2 small plastic or vinyl dots (think the circle (dot) of paper you get as waste when using a paper hole punch), one green and one red, to the words "Delay" and "Looper" to designate what mode the LED color is telling the user it is currently in. Or I had thought of using red and green highlighters on the screenprinted words and then wiping it away, so it hopefully will ever-so-lightly stain the white words the designated colors (red or green).
