Need help with schematic symbol

okies

Member
Messages
7

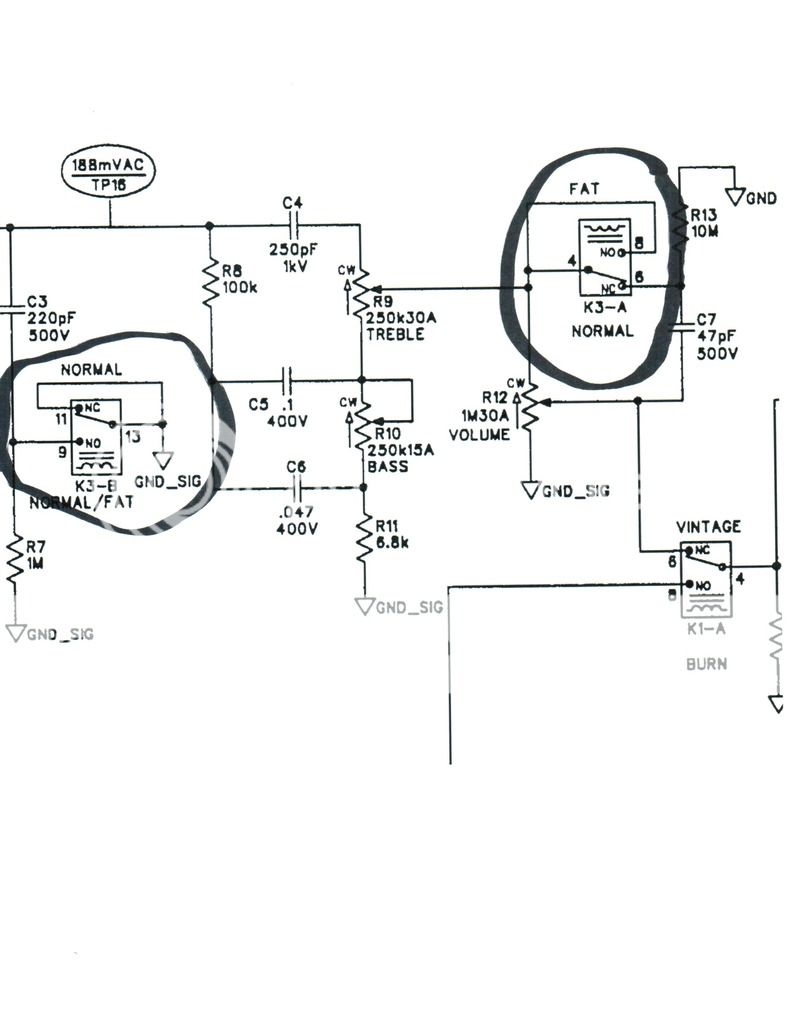

Hi guys, I'm trying to replace the normal/fat switch on my Fender Super Sonic 22 head, the schematic shows the part to be a SPDT switch, I assume on-on? It also has a single coil symbol on the part? Can anyone help me out here, I am just trying to locate the correct part and am having no luck at all.

Thanks,

Steve

Messages
322
Hi guys, I'm trying to replace the normal/fat switch on my Fender Super Sonic 22 head, the schematic shows the part to be a SPDT switch, I assume on-on? It also has a single coil symbol on the part? Can anyone help me out here, I am just trying to locate the correct part and am having no luck at all.

Thanks,

Steve
you circled relays


Jeff Gehring

Gold Supporting Member
Messages
6,352
Looking on the Super Sonic 22 schematic, the front panel switches are in the lower left of the schematic, midway between rows A and B and column 8. S2 is the fat/normal switch which controls the relays you had circled in the diagram. Are you sure your problem is the switch and not the relay? The switch is a simple DPDT, with both switches paralleled for reliability.


okies

Member
Messages
7
Looking on the Super Sonic 22 schematic, the front panel switches are in the lower left of the schematic, midway between rows A and B and column 8. S2 is the fat/normal switch which controls the relays you had circled in the diagram. Are you sure your problem is the switch and not the relay? The switch is a simple DPDT, with both switches paralleled for reliability.

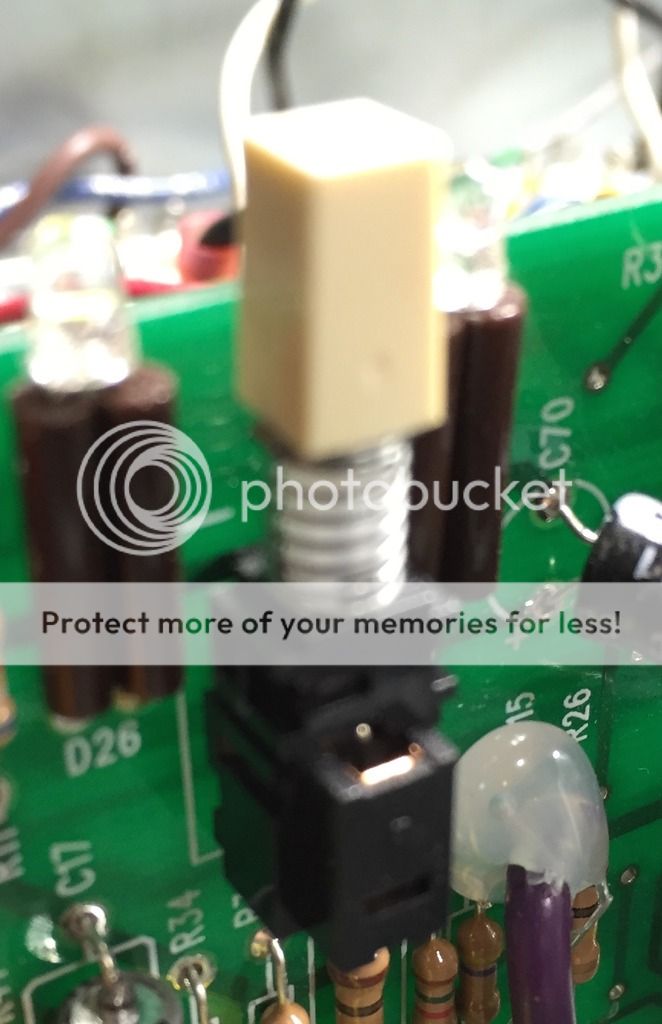

Thanks for the help, the push switch would not stay engaged, I assumed it was a mechanical failure in the switch? Would a bad relay cause the switch to not stay engaged?
