Rangemaster Cutoff Frequency Modifications

eolon

Gold Supporting Member
Messages
487
The Rangemaster Treble Booster can be modified for wider boost range.

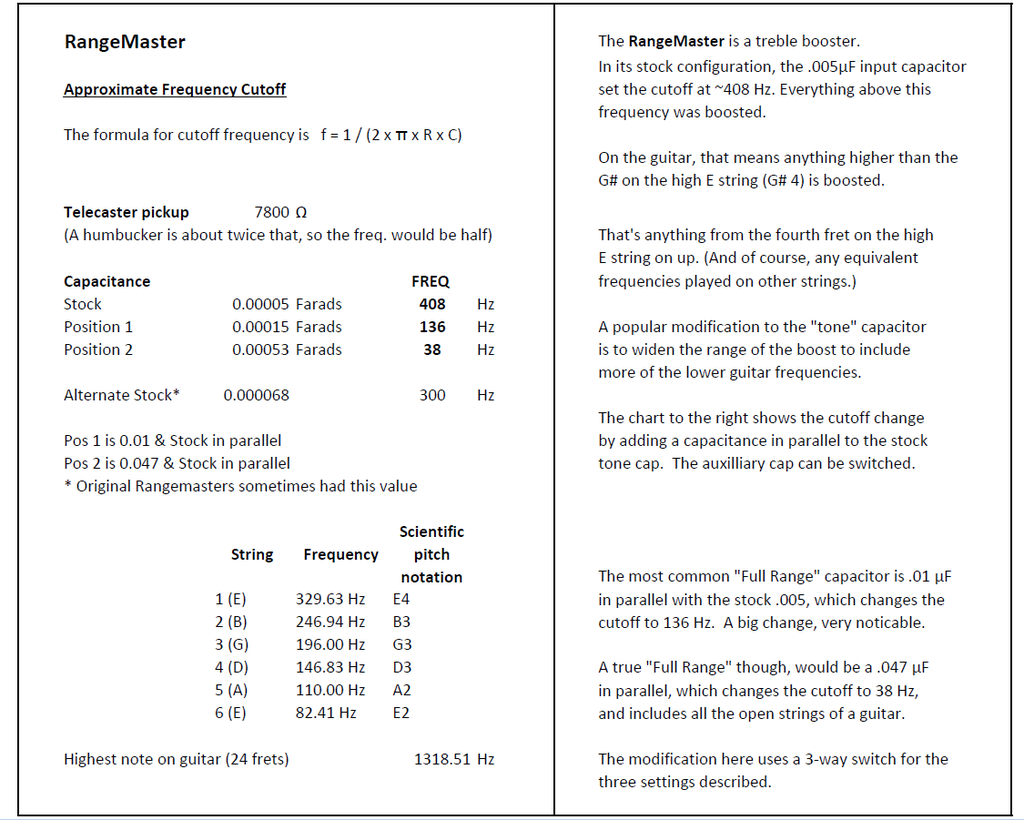

Here are the frequency calculations and some suggested capacitance.

By adding a couple of capacitors and a 3-way switch to your Rangemaster,
you can have settings for "stock" tone, a "full range", and a "super full-range".



Best Regards,

e


MoonshineMan

Senior Member
Messages
7,506
And the Beano. Don't know about specs, but there's a switch. I always leave it to stock specs anyway.


eolon

Gold Supporting Member
Messages
487
There are quite a few Rangemaster clones with this type of modification. If you have a treble booster with the original Rangemaster circuit, though, you can use this data to modify the treble frequency cutoff. The 3-way switch gives three options, including "stock".


stahlhart

Silver Supporting Member
Messages
2,617
I'm going to have to look at the values on my Beano Boost. I got this thing thinking it would literally be a treble boost, but mine behaves more like an overdrive pedal, in all three switch positions.

Normally that would disappoint me, but the fact that it absolutely nails the tone on the Paranoid album makes up for that.
