Wiring help needed!

schlagsaite

Member
Messages
110
I'm in the process of converting my Grosh EJ to a two-P90 setup.

Everything worked fine so far, but i'm a bit lost with wiring the CRL 3-way switch.

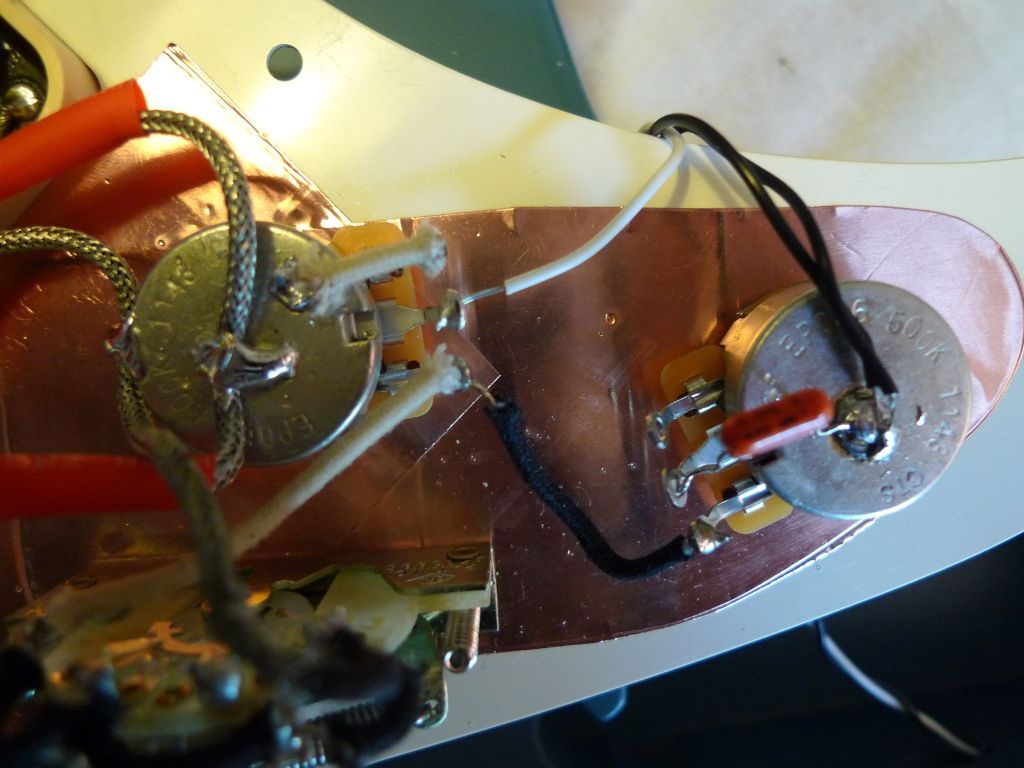

I'm using the following picture to show what i'm trying:


I soldered the bridge pu at Pole A 1 and the neck at Pole B 3.

Than i tried two different routings which both ended up with non-functioning middle position. Bridge and neck work fine.

1.
Pole B 0 - 1 - Pole A 3 -0

2.
Jumper Pole A 0 - Pole B - 0
Jumper Pole B 1 - 2
Jumper Pole A 2 - 3

Any help appreciated!!
